Cotton conveyor System 1

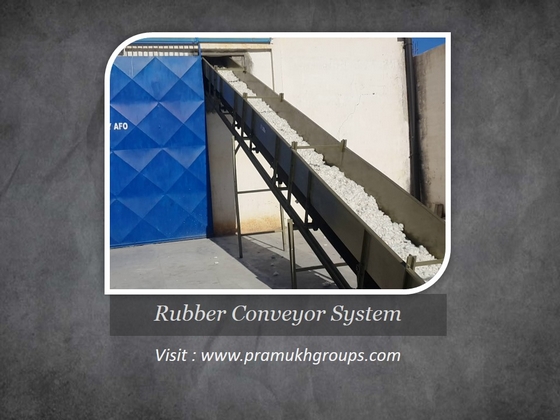

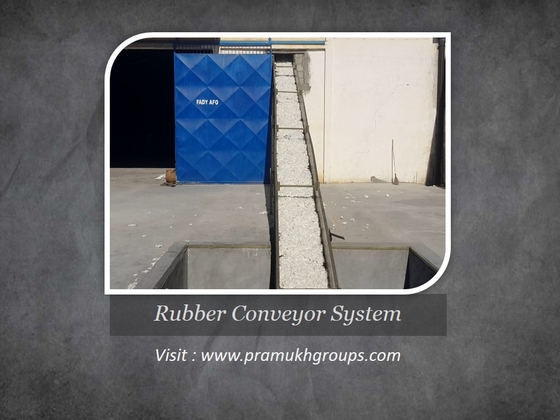

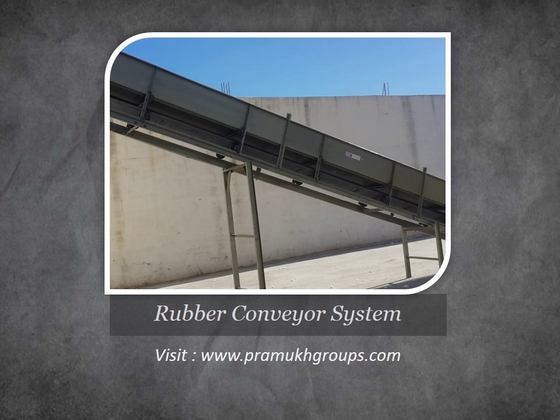

Rubber Conveyor System For Raw Cotton & Lint Cotton

A conveyor belt is the carrying medium of a belt conveyor system (often shortened to belt conveyor). A belt conveyor system is one of many types of conveyor systems. A belt conveyor system consists of two or more pulleys (sometimes referred to as drums), with an endless loop of carrying medium—the conveyor belt—that rotates about them. One or both of the pulleys are powered, moving the belt and the material on the belt forward. The powered pulley is called the drive pulley while the unpowered pulley is called the idler pulley. There are two main industrial classes of belt conveyors; Those in general material handling such as those moving boxes along inside a factory and bulk material handling such as those used to transport large volumes of resources and agricultural materials, such as grain, salt, coal, ore, sand, overburden and more.Today there are different types of conveyor belts that have been created for conveying different kinds of material available in PVC and rubber materials.The belt consists of one or more layers of material. Many belts in general material handling have two layers. An under layer of material to provide linear strength and shape called a carcass and an over layer called the cover. The carcass is often a woven fabric having a warp & weft. The most common carcass materials are polyester, nylon and cotton. The cover is often various rubber or plastic compounds specified by use of the belt. Covers can be made from more exotic materials for unusual applications such as silicone for heat or gum rubber when traction is essential.We offering heavy duty Rubber Belt Conveyors, This Conveyors are designed to supply big-quantity cotton materials over short and long distance. Our convenors are easy for installation,Low maintenance and easy operating. This Rubber Conveyor use in ginning industries as well as ston crusing industries, concrite industries, cement industries. this conveyour is manufacture high uality material.


  • High Power Fast & Slow Conveyor
  • Fully Automatic Conveyours
  • Raw Cotton Conveyor System
  • Cotton Lint Conveyor system
  • .


    • Nylone Conveyor Belt
    • Easy Feeting Parts, and Roller
    • High Quality Rubber belt 2,3,4,5 Ply width 800,900,1000,1200,1400 mm
    • Low consumption of electric power.
    • Heavy Steel wall sides (12 to 14 Gauges)
    • Lubrication is Pressure fed and Dust Pr off Greasing system.
    • Oil immersed gear box for long life of gears and bearings.

        Fabric type thickness Ply Thickness (mm/p) strength 2 PLY (mm/P) strength 3 PLY strength 4 PLY strength 5 PLY strength 6 PLY width mm
        NYLON NN-80 0.60 160 240 320 400 480 300-2500
        NYLON NN-100 0.75 200 300 400 500 600 300-2500
        NYLON NN-150 1 300 450 600 750 900 300-2500
        NYLON NN-200 1.1 400 600 800 1000 1200 300-2500
        NYLON NN-250 1.25 500 750 1000 1250 300-2500
        NYLON NN-300 1.35 600 900 1200 1500 1800 300-2500
        NYLON NN-350 1.45 NIL 1050 1400 1750 2100 300-2500
        NYLON NN-400 1.55 NIL NIL 1600 2000 2400 300-2500
        NYLON NN-500 1.7 NIL NIL 2000 2500 3000 300-2500

        Service Lists

        • Provide Engineers For Ginnery & Oil Mill
        • Reparing Facility For All Types Gin Machines
        • Supply Double Roller & Saw Gin Parts
        • Export Facility
        • Provide Electrical Solutions
        • Bulid Strong Steel Structure
        • One Way Solutions For Ginning & Oil Mill
